The 2026 Hyundai IONIQ 9 in Bristol, TN

The 2026 Hyundai IONIQ 9 in Bristol, TN

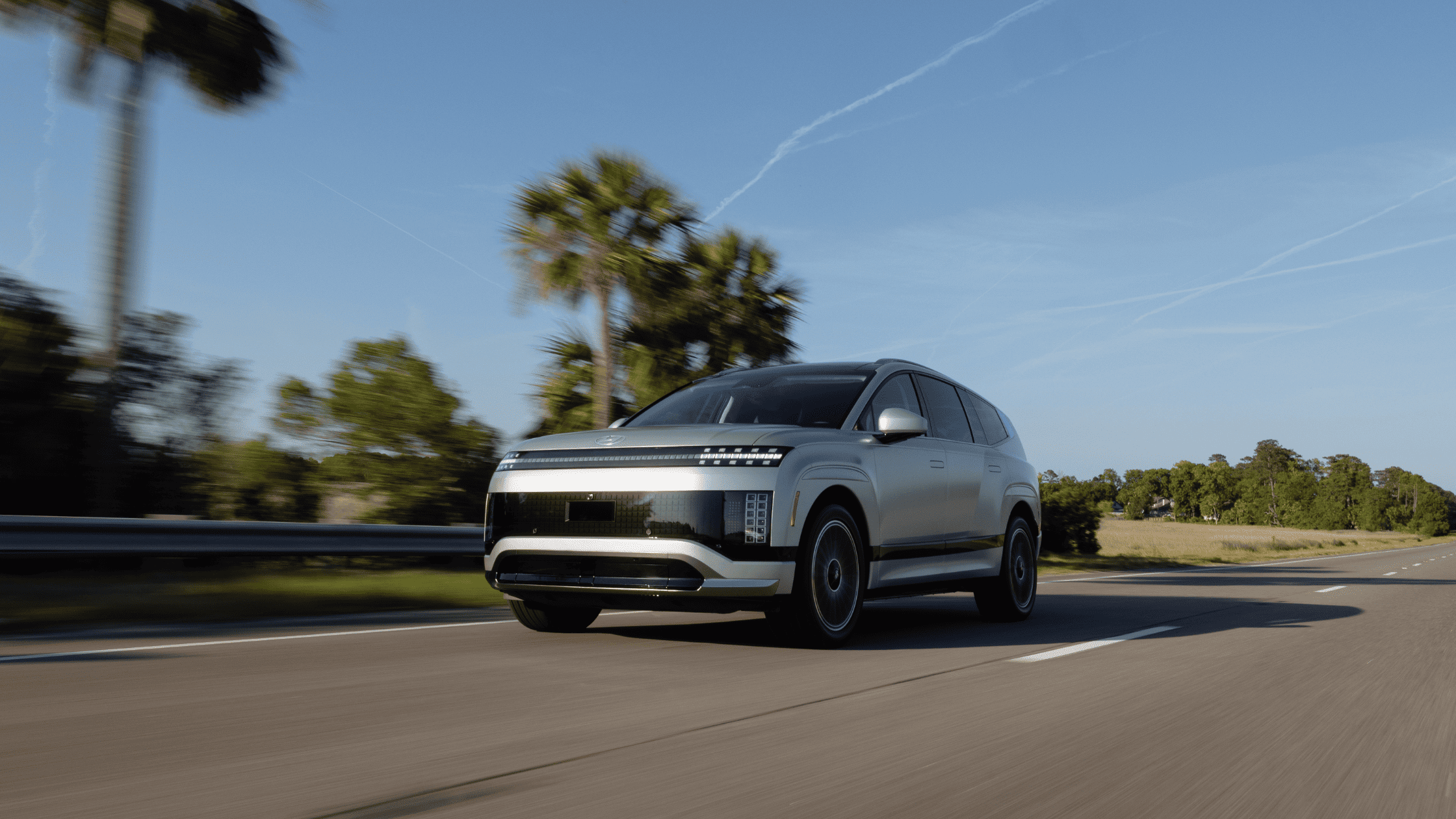

The 2026 Hyundai IONIQ 9 is a fully electric, three-row SUV engineered on Hyundai's dedicated E-GMP platform. Designed for functionality and utility, the 2026 Hyundai IONIQ 9 is available in Rear-Wheel Drive (RWD) and All-Wheel Drive (AWD) variants, including a dual-motor AWD configuration with enhanced power delivery. The vehicle features a large 110.3 kWh lithium-ion battery pack, an advanced thermal management system, and a fully electric drivetrain integrated with regenerative braking.

Drivetrain Architecture and Electric Motors

The 2026 Hyundai IONIQ 9 employs permanent magnet synchronous motors (PMSM) across all powertrain configurations. The base RWD setup is equipped with a single rear motor rated at 160 kW. The standard AWD trim includes two motors: 70 kW on the front axle and 160 kW on the rear. The highest-output version uses 160 kW motors on both the front and rear axles.

All models are paired with a single-speed reduction gear transmission. Gear ratios are calibrated specifically for their respective drive systems: 13.16 for RWD and 10.65 (front) / 13.16 (rear) for AWD. A shift-by-wire interface replaces conventional gear selectors, and drivers can engage multiple operating modes using a steering-mounted Drive Mode Select button. Available modes include Eco, Normal, Sport, Snow, and a user-defined My Mode.

High-Capacity Battery and Charging Capabilities

All 2026 Hyundai IONIQ 9 trims are fitted with a 110.3 kWh lithium-ion battery. The battery uses a battery preconditioning system that includes a heating function to maintain performance during cold weather.

Charging options are extensive. The 2026 Hyundai IONIQ 9 supports AC Level II charging (240V) and is equipped with an ultra-fast charging interface capable of operating at up to 800 volts and 350 kW. The onboard charger delivers a maximum of 10.9 kW. Hyundai places the charge port on the passenger-side rear quarter panel and provides a power-operated door for access.

Chassis Design and Suspension

The 2026 Hyundai IONIQ 9 is built on a unibody frame that combines advanced high-strength steel and high-tensile steel for structural rigidity. The front suspension uses a MacPherson® strut design with gas dampers, while the rear employs a five-link multi-link setup, also with gas dampers.

The electric SUV features motor-driven power steering (C-MDPS) with a rack-and-pinion mechanism. The steering ratio is 16.02 with a 2.93 turn lock-to-lock and a curb-to-curb turning diameter of 41 feet.

Braking and Regenerative Systems

The braking system consists of ventilated front disc brakes measuring 360 mm in diameter and 30 mm in thickness. All models use an active hydraulic booster to support both mechanical and regenerative braking. Regenerative control paddles mounted behind the steering wheel allow the driver to adjust energy recovery levels during deceleration.

Additional features include electronic brake-force distribution (EBD), anti-lock braking (ABS), an electric parking brake with auto hold, and hill start assist control.

Dimensions and Aerodynamics

The 2026 Hyundai IONIQ 9 has a wheelbase of 123.2 inches, an overall length of 199.2 inches, and a width of 78 inches. Its height reaches 70.5 inches. Ground clearance is listed at 6.9 inches. The front and rear overhangs measure 34.6 and 41.3 inches, respectively.

Wheel and tire combinations vary by trim, ranging from 19-inch to 21-inch alloy wheels. Tire sizes include 255/60R19, 275/50R20, and 285/45R21, depending on equipment level. The vehicle’s aerodynamic coefficient of drag is 0.269.

Interior Layout and Cabin Features

The 2026 Hyundai IONIQ 9 offers seating for six or seven passengers depending on configuration. Trims with seven-passenger capacity use second-row bench seats with manual entry assist. The six-passenger models include power-adjustable captain’s chairs in the second row with integrated wing-type headrests and leg rests. All first-row seats are eight-way power adjustable and heated, with ventilation and memory functions available on higher trims.

A flat cabin floor allows unrestricted movement between seating rows. All three rows receive dedicated air vents. The HVAC system uses a heat pump for thermal efficiency and includes dual-zone automatic temperature control in the first and second rows.

Cargo volume measures 86.9 cubic feet behind the first row, 46.7 cubic feet behind the second, and 21.9 cubic feet behind the third row. All trims include a powered liftgate and power-operated hood and charge-port door.

Digital Interface and Infotainment

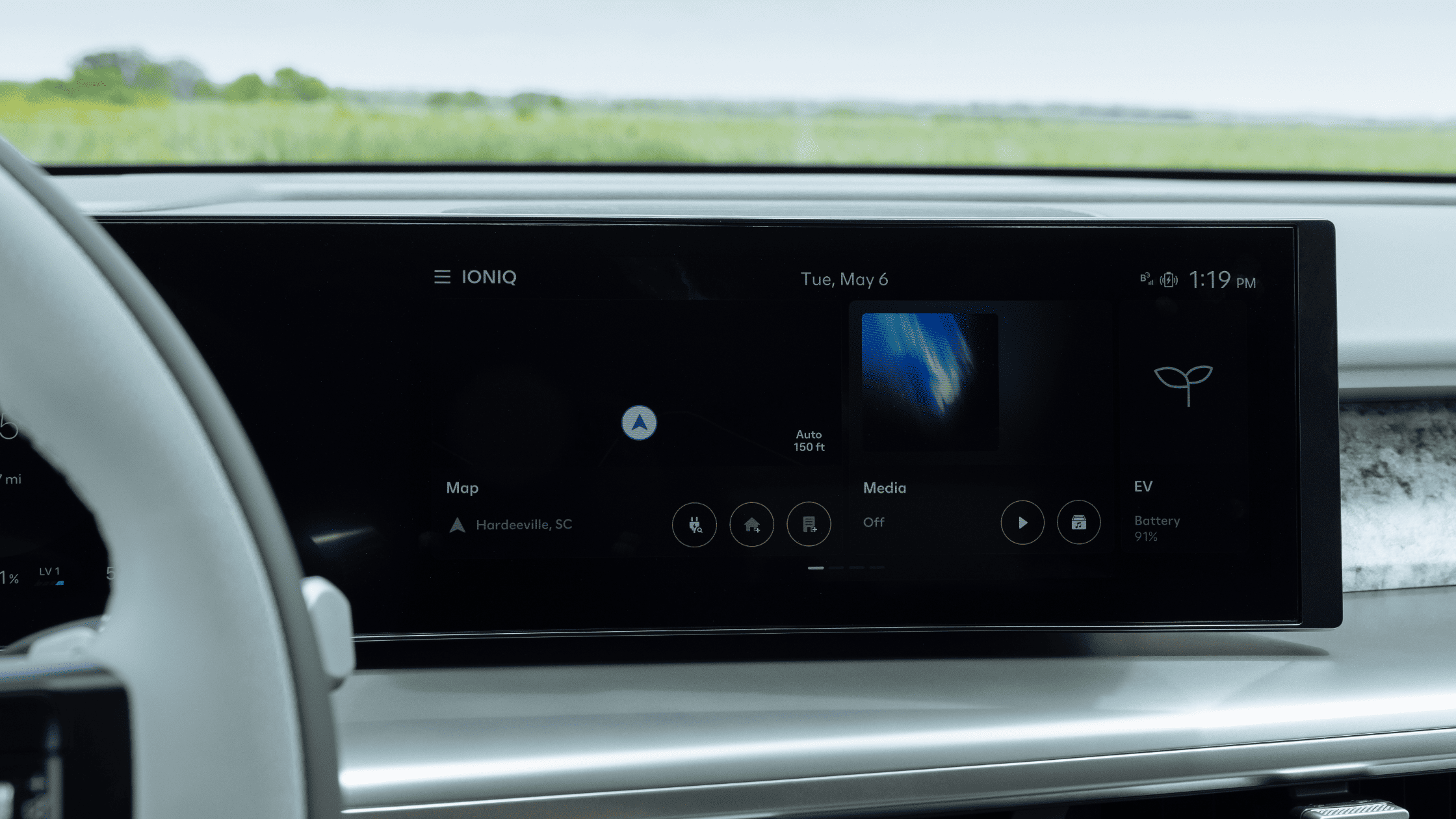

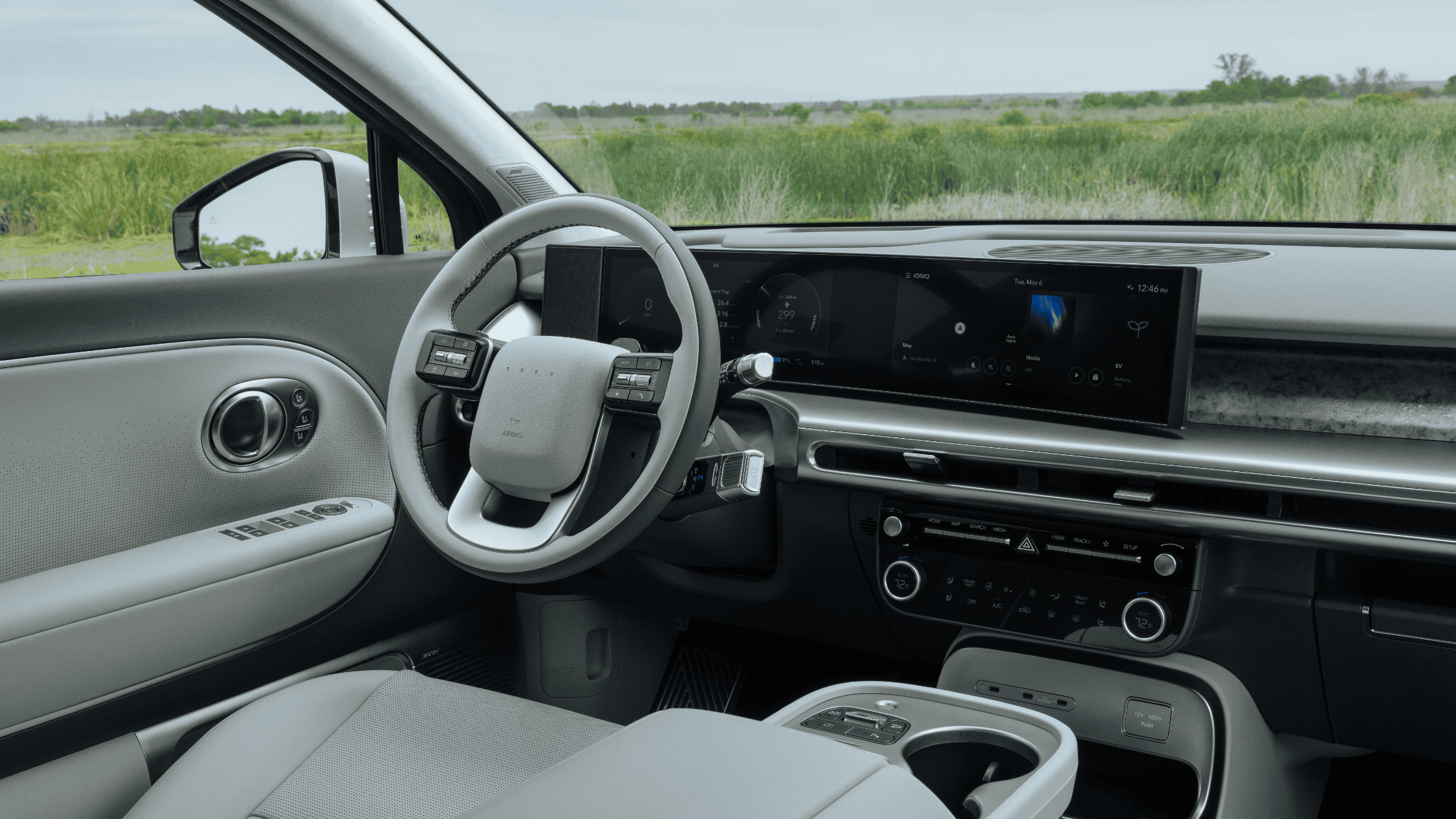

All trims include a 12.3-inch digital instrument cluster and a 12.3-inch center infotainment display. The system includes wireless Android Auto™ and Apple CarPlay®, Bluetooth® multi-device connectivity, and over-the-air update capability. Higher trims come with a Bose® premium audio system and a 10-inch head-up display. Seven USB-C ports are distributed across all three rows.

A wireless charging pad is standard, along with a rearview monitor with parking guidance. Select trims offer a Surround View Monitor and Blind-Spot View Monitor for improved situational awareness.

Safety and Driver Assistance Systems

The 2026 Hyundai IONIQ 9 includes a comprehensive suite of active safety systems under Hyundai SmartSense. These include Forward Collision-Avoidance Assist with detection for vehicles, pedestrians, and cyclists. Additional functions include Junction Turning, Lane Change Oncoming, Side Detection, and Evasive Steering Assist.

Lane Keeping Assist, Lane Following Assist, Smart Cruise Control with Stop & Go, and Highway Driving Assist 2 are standard. Other features include Blind-Spot Collision-Avoidance Assist, Rear Cross-Traffic Collision-Avoidance Assist, and Parking Distance Warning. High-level trims add Forward and Side Parking Collision Avoidance Assist, as well as Remote Smart Parking Assist 2.

Passive safety features include three-point seatbelts for all outboard seats, seatbelt pretensioners and load limiters in all three rows, and child safety locks.

Functional Accessories and Cabin Controls

All trims feature shift-by-wire column selectors and leather-wrapped steering wheels. Steering wheels on higher trims include heating and powered tilt-and-telescoping adjustment. Center consoles offer storage with sliding armrests in upper trims.

Lighting features include full LED external lamps and ambient interior lighting on select trims. Interior material quality ranges from stain-resistant cloth to Hyundai’s H-Tex® surfaces. Hyundai Digital Key 2 is standard on higher trims and uses near-field communication (NFC) and Bluetooth® Low Energy (BLE) for smartphone-based access and vehicle control.

Additional features include dual-illuminated sunvisors, auto-dimming rearview mirrors, and a Full Display Mirror with HomeLink in the top trim.
